01. Industry Pioneer
Patented zinc-nickel coating resists corrosion for 720+ hours of salt spray, ensuring unmatched longevity in any environment.
02. High-Precision Welding Process
The welding tprocess ensures 4,000N high- strength, ultra-smooth, blemish-free welds, ensuring superior durability, stability, and cost-effective efficiency without the need for extra processing.
03. Customizable & Flexible
Pre-welded elbows or on- site bends for seamless adaptability.
04. Built for Any Environment
Multiple coatings for reliable indoor and outdoor performance.
Specifications
Material: 304/316/316L stainless steel, Q235 carbon steel
Wire Diameter: 3.5 mm, 4.0 mm, 5.0 mm, 6.0 mm, 8.0 mm, and adjustable

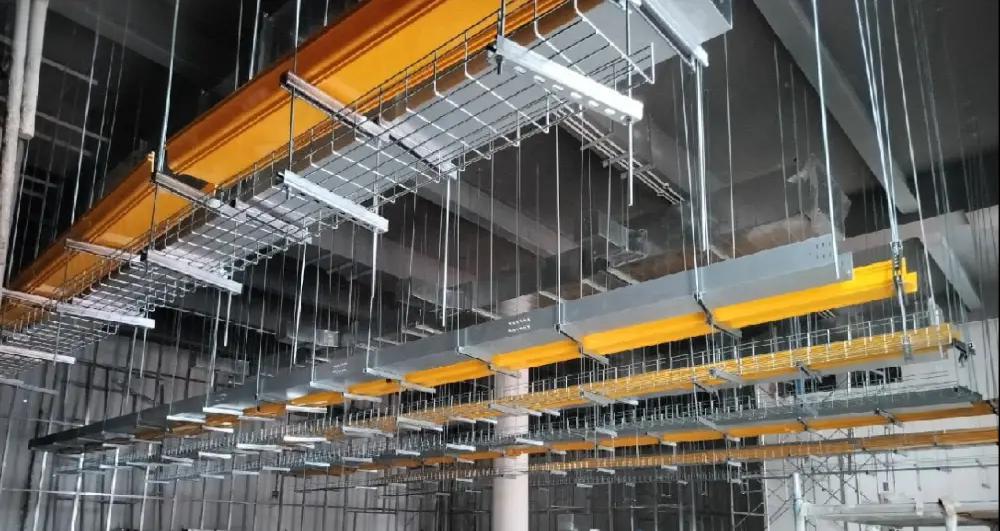

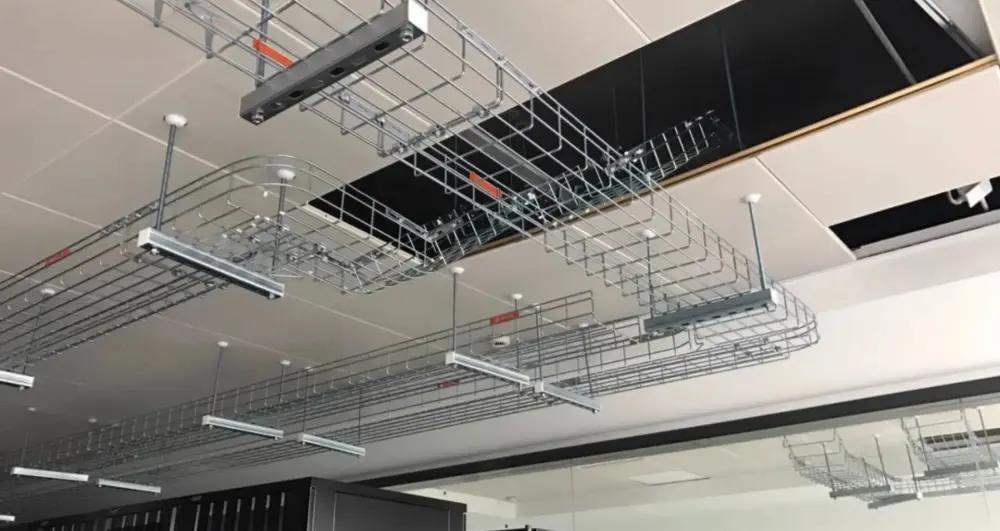

Installation Methods: cabinet top mount, floor and underfloor mount, wall mount, and ceiling mount.
|
Available Finishes |
EZ |
Electrogalvanized |
|
HDG |
Hot Dipped Galvanised |
|
|
GI |
Pre-galvanized |
|
|
PC |
Powder Coated |
|
|
Ni |
Nickel Plated |
|
|
NiZn |
Zinc-nickel Plated |
Standards & Certification
|
Size |
Section |
|
100x100 |
|
|
100x200 |
|
|
100x300 |
|
|
100x400 |
|
|
100x500 |
|
|
100x600 |
|
Default unit mm
|
Item Number |
Height |
Width |
Length |
Wire Diameter |
Weight |
|
CTW-E100x100 |
100 |
100 |
3000 |
5.0 |
4.84kg |
|
CTW-E100x200 |
100 |
200 |
3000 |
5.0 |
6.14kg |
|
CTW-E100x300 |
100 |
300 |
3000 |
5.0 |
7.43kg |
|
CTW-E100x400 |
100 |
400 |
3000 |
5.0 |
8.73kg |
|
CTW-E100x500 |
100 |
500 |
3000 |
5.0 |
10.03kg |
|
CTW-E100x600 |
100 |
600 |
3000 |
5.0 |
11.33kg |
P/N Definition:
◆ E.g. CTWE100x100, CTW means wire mesh cable tray with T-curve wires, 100x100 means HxW (inner size).
◆ Wire diameter range: 4.0mm, 5.0mm (common diameter 5.0mm).
|
Item Number |
Height |
Width |
Length |
Weight |
|
PJ-CVRC100-1000 |
8.5 |
100 |
1000 |
1.46kg |
|
PJ-CVRC150-1000 |
8.5 |
150 |
1000 |
1.97kg |
|
PJ-CVRC200-1000 |
8.5 |
200 |
1000 |
2.48kg |
|
PJ-CVRC300-1000 |
8.5 |
300 |
1000 |
3.50kg |
|
PJ-CVRC400-1000 |
8.5 |
400 |
1000 |
4.52kg |
|
PJ-CVRC450-1000 |
8.5 |
450 |
1000 |
5.03kg |
|
PJ-CVRC500-1000 |
8.5 |
500 |
1000 |
5.54kg |
|
PJ-CVRC600-1000 |
8.5 |
600 |
1000 |
6.56kg |
|
PJ-CVRC100-3000 |
8.5 |
100 |
3000 |
4.38kg |
|
PJ-CVRC150-3000 |
8.5 |
150 |
3000 |
5.91kg |
|
PJ-CVRC200-3000 |
8.5 |
200 |
3000 |
7.44kg |
|
PJ-CVRC300-3000 |
8.5 |
300 |
3000 |
10.50kg |
|
PJ-CVRC400-3000 |
8.5 |
400 |
3000 |
13.56kg |
|
PJ-CVRC450-3000 |
8.5 |
450 |
3000 |
15.09kg |
|
PJ-CVRC500-3000 |
8.5 |
500 |
3000 |
16.62kg |
|
PJ-CVRC600-3000 |
8.5 |
600 |
3000 |
19.68kg |
P/N Definition:
◆ E.g. PJ-RCVR100-1000, PJ means cable tray accessaries, RCVR means cover, 100 means width, 1000 means length.
|
Safe Working Load (kg/m) |
|||||
|
Height (mm) |
Width (mm) |
Support Interval |
|||
|
1.0m |
1.5m |
2.0m |
3.0m |
||
|
100 |
100 |
143 |
110 |
73 |
37 |
|
|
200 |
159 |
122 |
81 |
41 |
|
|
300 |
183 |
141 |
94 |
47 |
Wire Diameter 5.0mm
