PRODUCT MODEL: DM03-MAX1400
HEIGHT: 1500mm-3000mm
MAXIMUM WIDTH: 1500mm
SURFACE TREATMENT: Powder coating
PRODUCT COLOR: Black(RAL9005), Yellow(RAL1023)
LOCK: Simple bolt lock (type A), Simple bolt lock (type B), Jimmy proof lock. ACCESSORIES: Slide rail kit, support wheel kit, lock kit, top frame kit, handle.
TOP FRAME: Optional
DESCRIPTION: Single sliding doos can have customized opening sizes of 400mm-2000mm, the safety lock with integrated switch is optional.
Machine Guarding Fence
Advantages of Machine Safety Fences

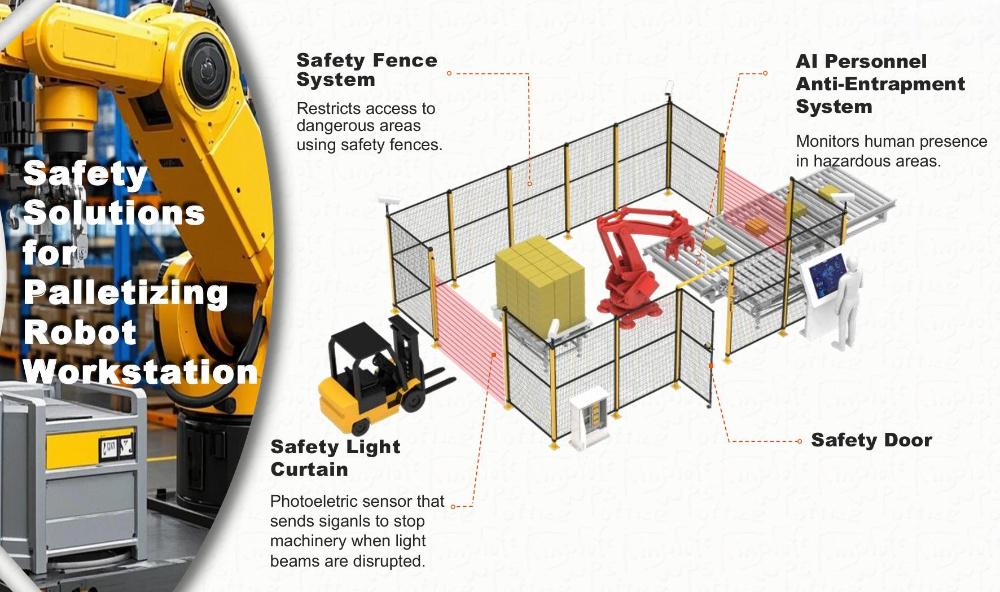

High Safety Design
Safety Fence System
Restricts access to dangerous areas using safety fences
AI Personnel Anti-Entrapment System
Monitors human presence in hazardous areas
Safety Light Curtain
Photo eletric sensor that sends siganls to stop machinery when light beams are disrupted
Machine safety fence information
Robot Safety fence Sliding Door-Installation Steps for Optional Accessories
1．Mount mesh panel A to the posts and fi x the posts to the ground.
2．Install mounting kit A to mesh panel A.
3．Fix the back of the outer slide rail to mounting kit A. (M6x25 fl at head bolt)
4．Pre-install bracket B-1 to the narrow side of the slide rail (M6x25 fl at head bolt).
5．Fix baseplate B-2 to the pre-installed bracket B-1 across mesh panel B (M6x16 countersunk bolt)
6．Mount the supporting wheel kit.
7．Mount the door handle.
8．Mount the top frame on top of the door.
9．Fix the post on the side of mesh panel B onto the ground.
2．Install mounting kit A to mesh panel A.
3．Fix the back of the outer slide rail to mounting kit A. (M6x25 fl at head bolt)
4．Pre-install bracket B-1 to the narrow side of the slide rail (M6x25 fl at head bolt).
5．Fix baseplate B-2 to the pre-installed bracket B-1 across mesh panel B (M6x16 countersunk bolt)
6．Mount the supporting wheel kit.
7．Mount the door handle.
8．Mount the top frame on top of the door.
9．Fix the post on the side of mesh panel B onto the ground.
Customers can choose from a range of safety fence panels tailored to their specific needs:
● Anti-Arc Panel – Ideal for electrical hazards, preventing arc flash risks.
● Mesh Panel – Lightweight & ventilated, perfect for machinery guarding.
● PC Panel – Transparent & impact-resistant for visibility & protection.
● Steel Panel – Best for glass industry, blocking high-impact splinters & debris.
● Tool Panel – Equipped with mounting options for tools & accessories.
For example, glass manufacturers should opt for Steel Panels to prevent flying shards. Each panel meets industrial standards for optimal safety.
● Anti-Arc Panel – Ideal for electrical hazards, preventing arc flash risks.
● Mesh Panel – Lightweight & ventilated, perfect for machinery guarding.
● PC Panel – Transparent & impact-resistant for visibility & protection.
● Steel Panel – Best for glass industry, blocking high-impact splinters & debris.
● Tool Panel – Equipped with mounting options for tools & accessories.
For example, glass manufacturers should opt for Steel Panels to prevent flying shards. Each panel meets industrial standards for optimal safety.
Customize equipment safety fence colors for clear zone identification: Use red for danger zones (high-risk areas), yellow for caution, and green for safe passages. Enhances visibility & safety compliance
VICH has 19 years of expertise in safety protection. Our high-quality safety fences are widely used across industries, with tailored solutions for each sector. Choose VICH for reliable protection!
